Quick answer: A broken or weakened motor mount may be associated with new vibration, a clunk during load changes, or greater powertrain movement, but those signs do not confirm the mount is the cause. Mount layouts and test methods vary by vehicle. Record when the change occurs and arrange a vehicle-specific inspection rather than choosing a part from the symptom alone.
What a motor mount does
Motor mounts support powertrain loads, help control movement, and isolate vibration before it reaches the vehicle structure. They connect the engine or transmission assembly to the body-side structure.
Component manufacturer Vibracoustic describes motor mounts as carrying static and dynamic motor loads while isolating vibration. Its overview shows that a mount can include a powertrain-side support, an isolation element, and a body-side connection. The isolation element has to support the assembly and manage vibration at the same time.
Mount layout, location, and terminology vary by vehicle. Current service and parts information should identify which mounts and related supports apply to the exact configuration.
Why motor mount designs vary
There is no single mount design for every car. Conventional rubber mounts, hydraulic mounts, switchable mounts, gearbox mounts, and torque-control links are among the designs described by Vibracoustic. Some use fluid damping or active control, while others use a simpler rubber isolation element.
Drivers often use “motor mount” as a general term, but service information may distinguish engine mounts, transmission mounts, gearbox mounts, or torque-control components. The GM bulletin below, for example, separates a right engine mount from a left transmission mount. A symptom cannot determine which name or position applies. The exact configuration has to be identified before a part or procedure is selected.
This variation matters during diagnosis and repair. A generic photograph or movement limit cannot establish failure across different designs. The vehicle identification number, current parts information, and manufacturer procedure provide the appropriate basis for the exact vehicle.
Possible symptoms of a damaged motor mount
A mount concern may change how vibration, noise, or movement reaches the driver. Useful observations include:
- A new or changed vibration, including one noticed at idle or while in gear
- A pop or clunk during a gear or load transition
- A repeatable change in vibration as engine speed or operating conditions change
- Greater-than-usual movement noticed incidentally, without trying to reproduce it
These observations can have multiple causes. They describe when the concern occurs; they do not identify a failed part.
| What you notice | What it can tell the technician | What it does not prove |
|---|---|---|
| New vibration under a repeatable operating condition | The reported condition may be reproduced during an appropriate check | That an engine mount is the only possible cause |
| Pop or clunk during a gear or load transition | The operating condition may be repeatable | Which mount or nearby component is responsible |
Why vibration or a clunk does not prove mount failure
Manufacturer bulletins show why the exact symptom pattern and vehicle matter. General Motors bulletin 21-NA-250 covers North American 2021 Buick Envision vehicles built from the start of regular production through January 1, 2021. It addresses a pop from the front when shifting from Park to Drive or Reverse, or during specified low-speed accelerator tip-in, tip-out, and braking conditions. The bulletin says the condition may be caused by the right engine mount or left transmission mount and directs technicians to diagnose it with chassis ears before replacing the failed mount.
That is a narrow Buick example. It does not establish that the same sound on another vehicle has the same cause.
FCA US bulletin 09-015-22 describes a low-frequency vibration noise at idle in gear for certain 2021 to 2022 Jeep Grand Cherokee vehicles built on or before September 7, 2022, with the specified 3.6-liter engine. The inspection condition includes an engine at operating temperature, Drive or Reverse selected, vehicle speed at zero, and the brake applied. Its diagnostic steps require the technician to verify related systems and address other trouble codes or symptom conditions before continuing with the mount procedure.
Together, the bulletins show that a manufacturer may define exact operating conditions, vehicle eligibility, diagnostic steps, and mount positions. A general symptom list cannot replace that process. For related service information, see Big Mission’s drivability diagnostics and repair page.
Can you drive with a damaged motor mount?
No universal safe distance or time can be given here. Obtain vehicle-specific guidance rather than relying on symptom severity alone.
Do not drive merely to recreate a noise. If steering, braking, or vehicle control is affected, or a critical warning appears, stop as soon as safely possible and consult the owner’s information or roadside assistance.
Do not treat a mild symptom or temporarily normal operation as clearance to continue driving. Ask a technician or roadside provider for vehicle-specific drive-or-transport guidance, and record the operating conditions without deliberately repeating the event.

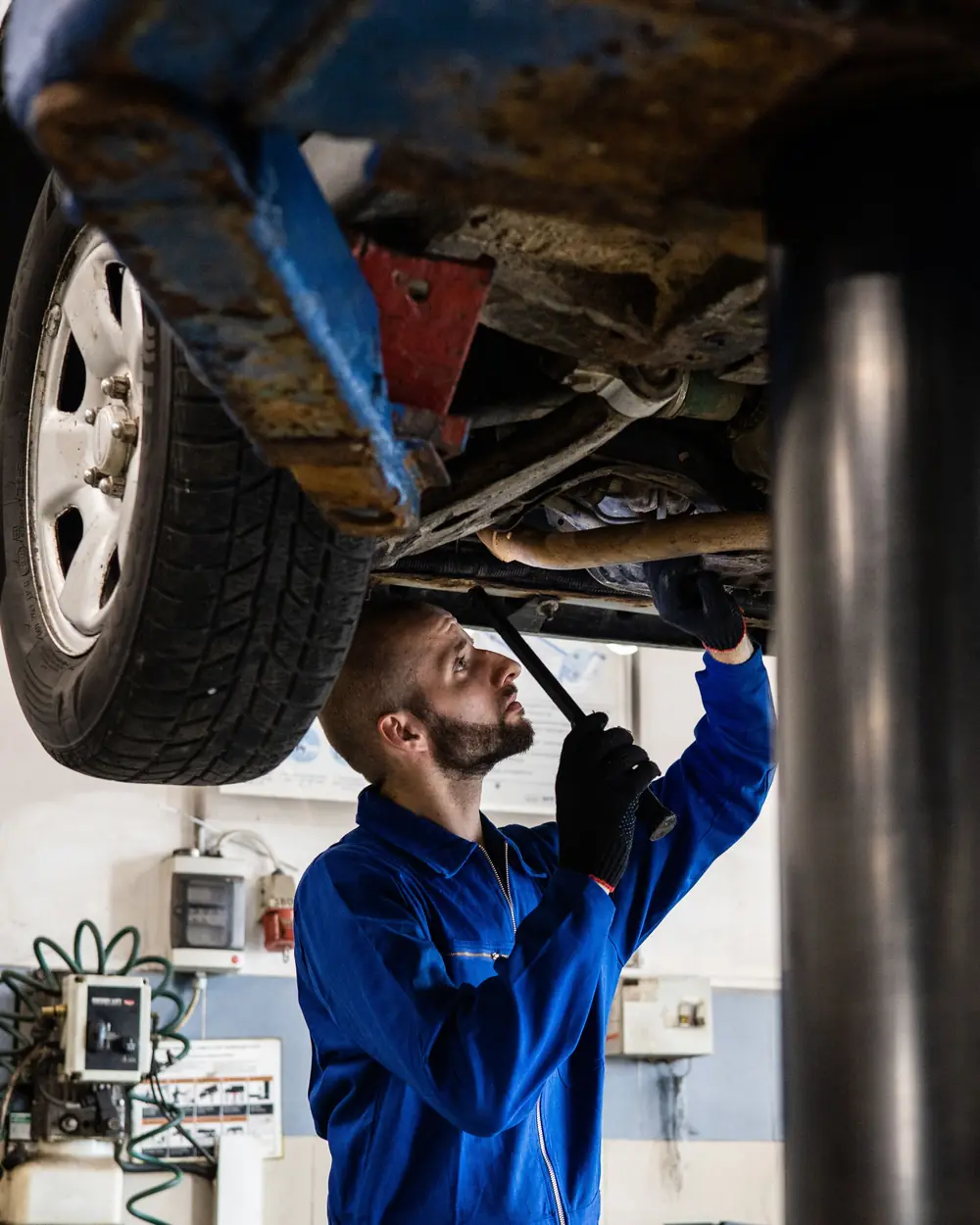

How a technician checks engine and transmission mounts
A technician may confirm the reported operating condition, identify the exact vehicle configuration, and consult applicable service information before selecting tests.
The assessment can use controlled reproduction and the inspection procedure specified for that vehicle. The GM bulletin’s use of chassis ears is one example for one condition, not a universal test.
The assessment should determine whether a mount or another condition is involved. Any replacement should follow the vehicle-specific finding, parts information, and service procedure.
What to record before an inspection
Record when and where the symptom occurs so the technician has the reported operating conditions:
- Whether the vehicle was cold, warming up, or at operating temperature
- Whether it was in Park, Neutral, Drive, Reverse, or moving when the symptom appeared
- Whether the noise or vibration changed with engine speed, gear selection, acceleration, braking, or turning
- Where the vibration was felt and where the sound seemed to come from
- Any dashboard warning or exact message
- Recent engine, transmission, exhaust, suspension, or collision repair
- A short recording made while safely parked, if the symptom can be captured without creating risk
Do not attempt a home test that requires accessing, supporting, or loading the powertrain. The required support points and procedures vary by vehicle.
Engine and powertrain assessment near Colorado Springs
Colorado Springs and Palmer Lake drivers can review Big Mission Automotive’s engine and powertrain service overview when a new vibration, pop, or clunk needs a vehicle-specific assessment. Bring the notes, warning history, and recent repair records so the concern can be evaluated in context.
This article provides general educational information. A symptom does not confirm a broken motor mount, and the correct next step depends on the exact vehicle and findings.
